CCSD

This section presents a range of CCSD performance benchmarks performed with ExaChem across three DOE supercomputing platforms: Frontier (OLCF), Aurora (ALCF), and Perlmutter (NERSC).

The benchmarks show the performance using the CCSD per-iteration timing on all three supercomputing platforms for a variety of molecular configurations. All benchmarks shown are closed-shell calculations and use an explicitly correlated all-electron treatment with no frozen core. The benchmarks are arranged in increasing order of basis functions. On each machine, the number of MPI processes per node is set to the number of GPU tiles per node - 4 for Perlmutter, 8 for Frontier, and 12 for Aurora. All molecular systems benchmarked demonstrate strong scaling with increasing node counts, though the optimal node count varies with the system and molecular configuration. For certain molecular systems, we also include data points beyond the strong-scaling limit, even where performance degrades, to highlight the scalability limits of the benchmarked systems. Please note that these timings were obtained in Summer 2025 and may evolve in the future.

System

basis

#electrons

#basis functions

ubiquitin-dgrtl [O8N8C22H41]

6-31g

292

424

spin-crossover complex [Co1N6C30H22]

cc-pvdz

268

657

spin-crossover complex [Mn1O2N4C22H28]

cc-pvdz

228

691

nitrobenzene [Br1O2N1C6H5]

cc-pvqz

98

712

ubiquitin-dgrtl [O8N8C22H41]

cc-pvdz

292

737

radon3 [Fe1N6C12H30]

def2-tzvp

168

783

spin-crossover complex [Fe1O2N4C16H28]

aug-cc-pvdz

194

817

porphyrin [N4C20H14]

cc-pvtz

162

916

spin-crossover complex [Mn1O2N4C22H28]

aug-cc-pvdz

228

956

mobius [C60H30]

6-31g*

390

960

spin-crossover complex [Co1N6C30H22]

aug-cc-pvdz

268

1085

spin-crossover complex [Fe1O2N4C16H28]

cc-pvtz

194

1120

siosi5 [Si26O37H30]

cc-pvdz

690

1136

guanine-cytosine-3bp [O6N24C27H30]

6-31+g**

408

1173

water53 [O53H106]

cc-pvdz

470

1242

ubiquitin-dgrtl [O8N8C22H41]

aug-cc-pvdz

292

1242

C60 [C60]

aug-cc-pvdz

360

1250

spin-crossover complex [Mn1O2N4C22H28]

cc-pvtz

228

1300

spin-crossover complex [Co1N6C30H22]

cc-pvtz

268

1334

ubiquitin-dgrtl [O8N8C22H41]

cc-pvtz

292

1714

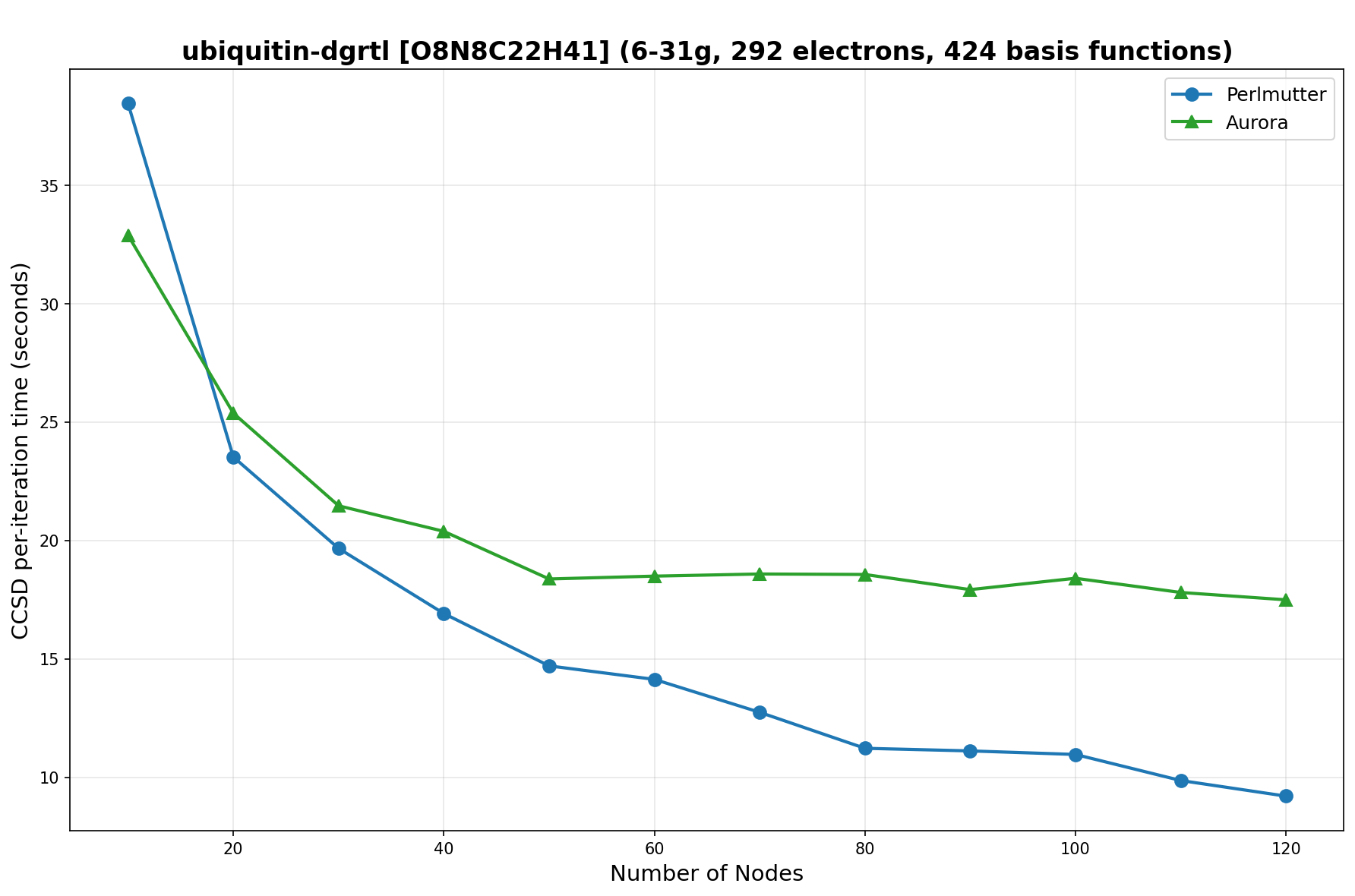

../../_images/combined_ccsd_Oa146_Va278.png

ubiquitin-dgrtl [O8N8C22H41] (6-31g, 292 electrons, 424 basis functions)

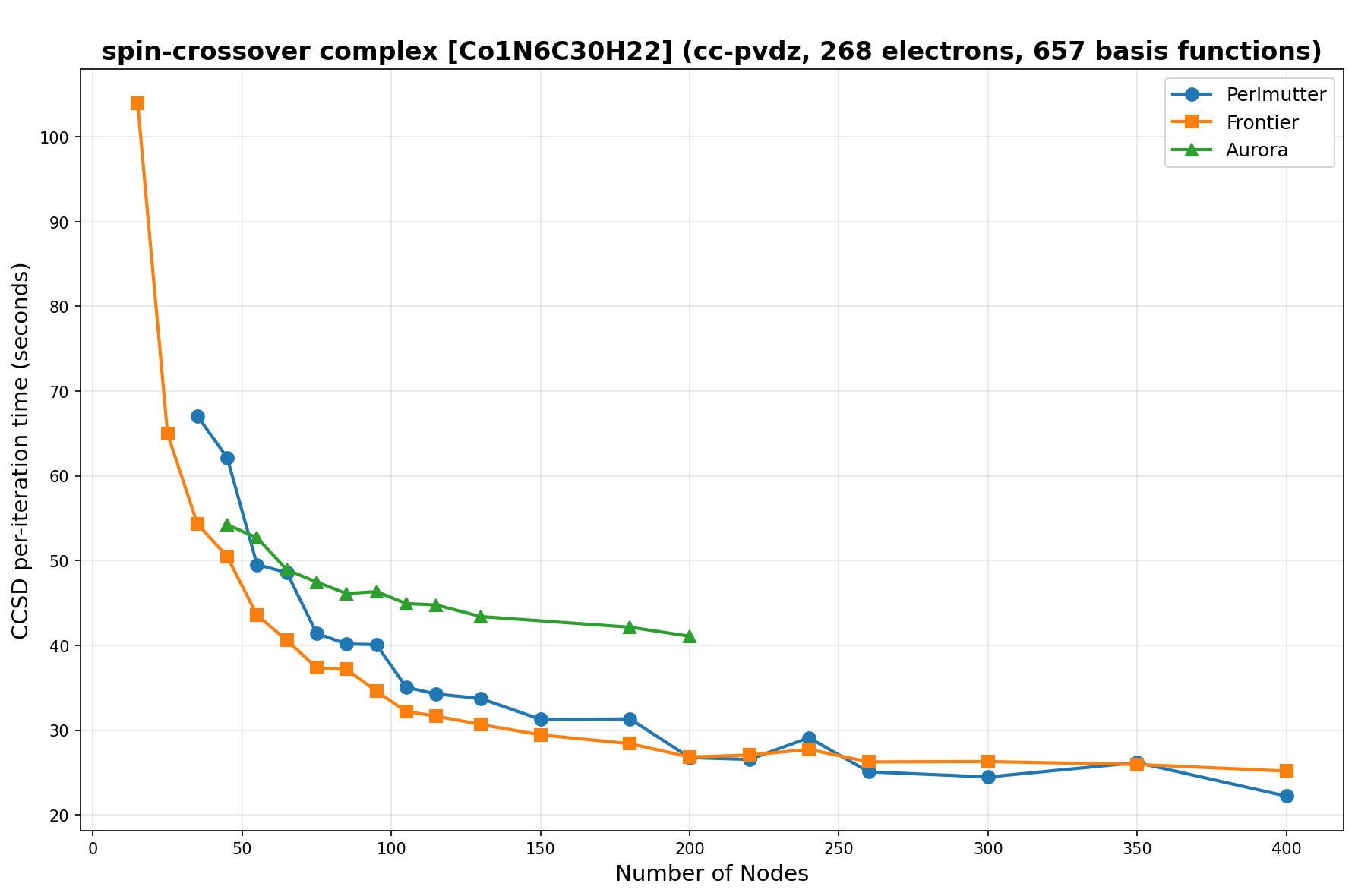

../../_images/combined_ccsd_Oa134_Va523.png

spin-crossover complex [Co1N6C30H22] (cc-pvdz, 268 electrons, 657 basis functions)

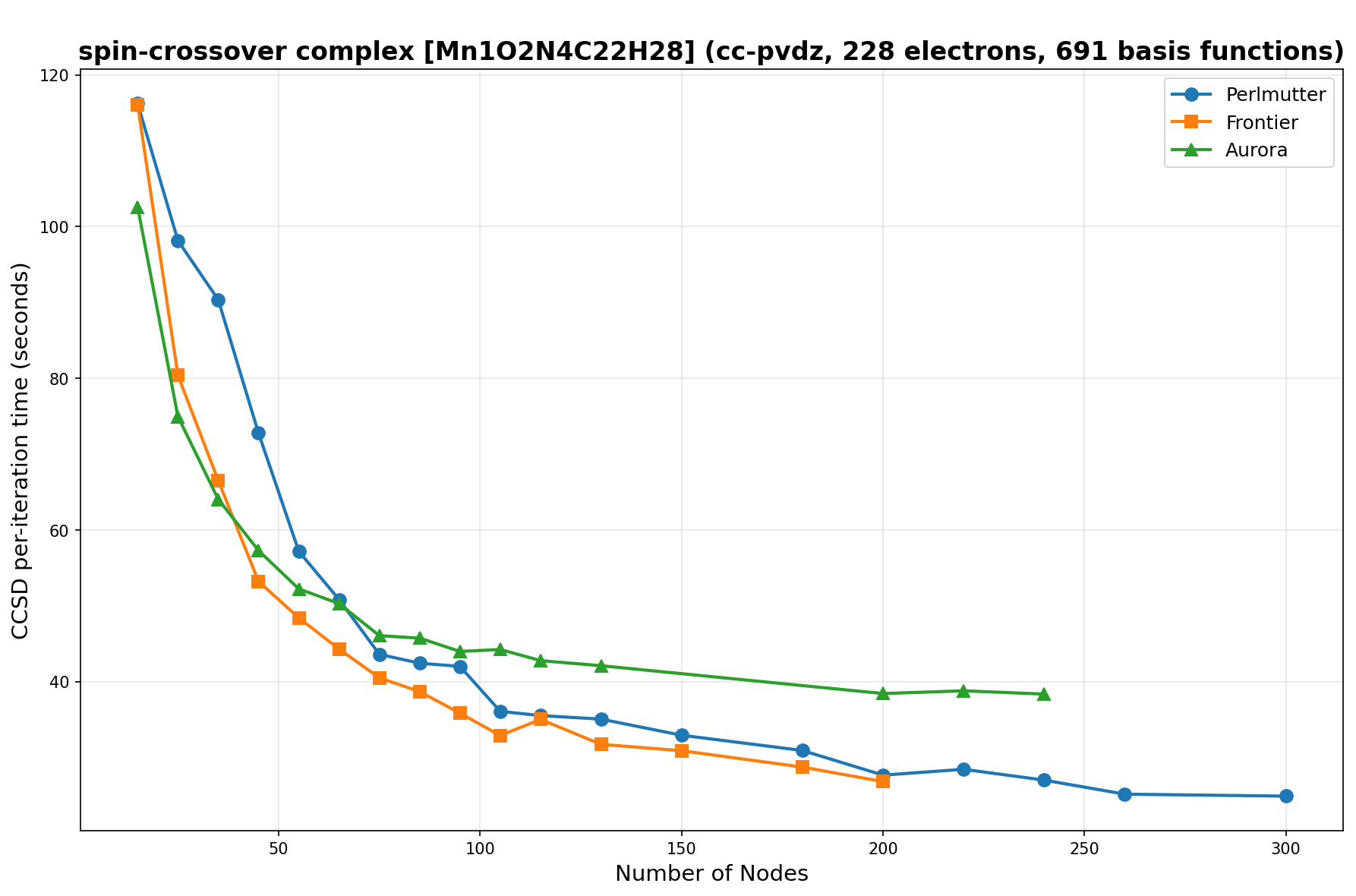

../../_images/combined_ccsd_Oa116_Va575.png

spin-crossover complex [Mn1O2N4C22H28] (cc-pvdz, 228 electrons, 691 basis functions)

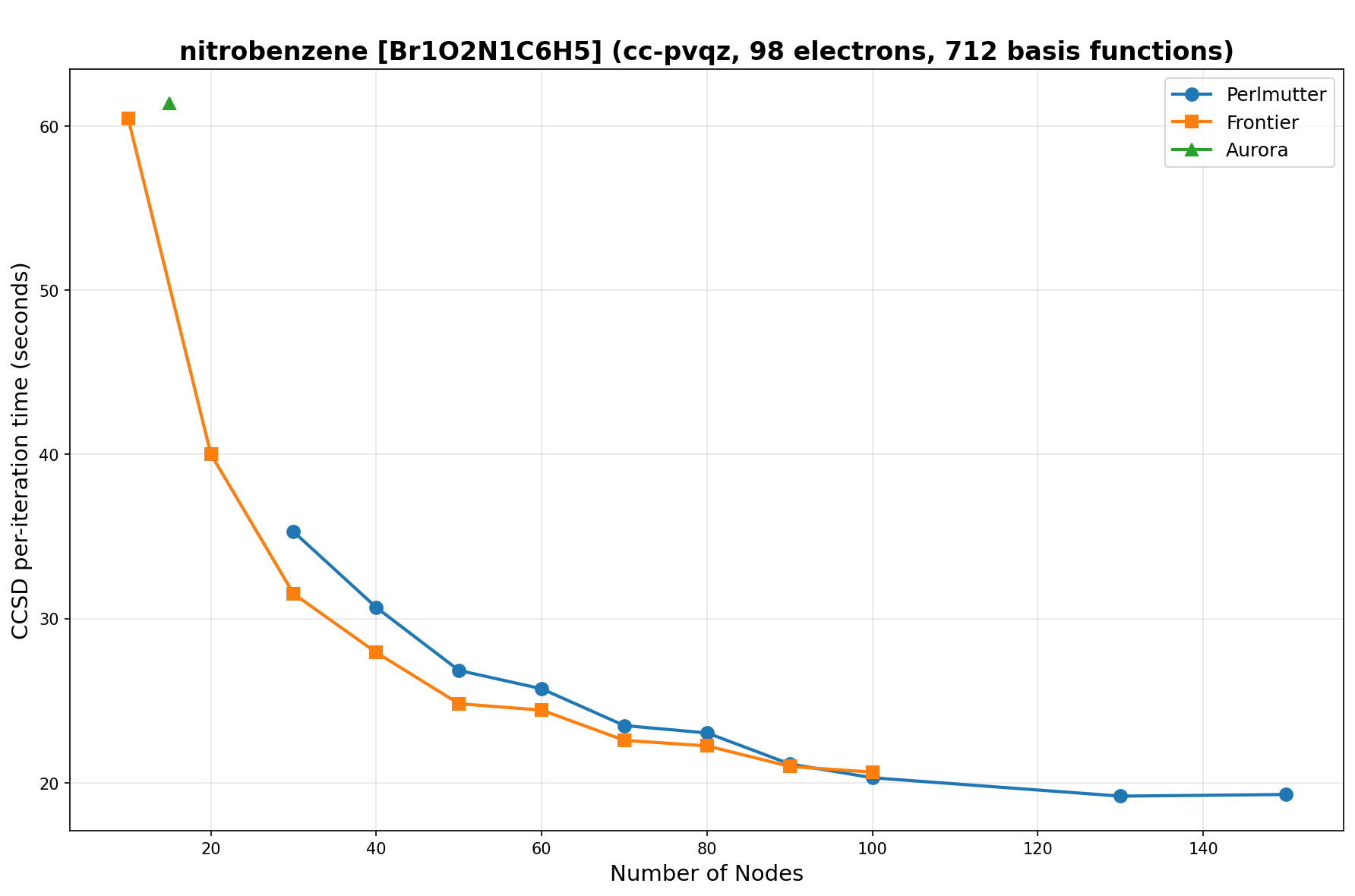

../../_images/combined_ccsd_Oa49_Va663.png

nitrobenzene [Br1O2N1C6H5] (cc-pvqz, 98 electrons, 712 basis functions)

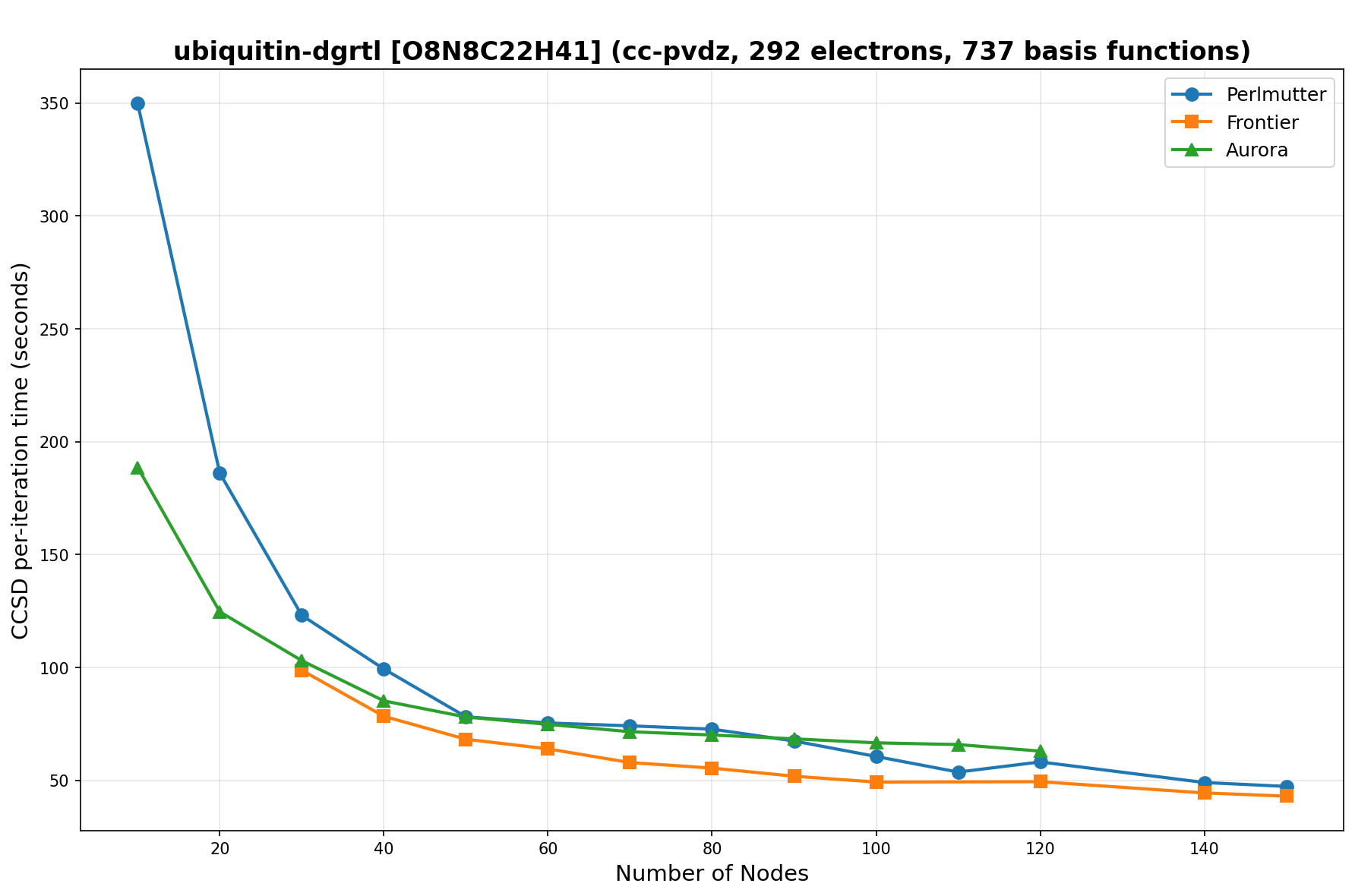

../../_images/combined_ccsd_Oa146_Va591.png

ubiquitin-dgrtl [O8N8C22H41] (cc-pvdz, 292 electrons, 737 basis functions)

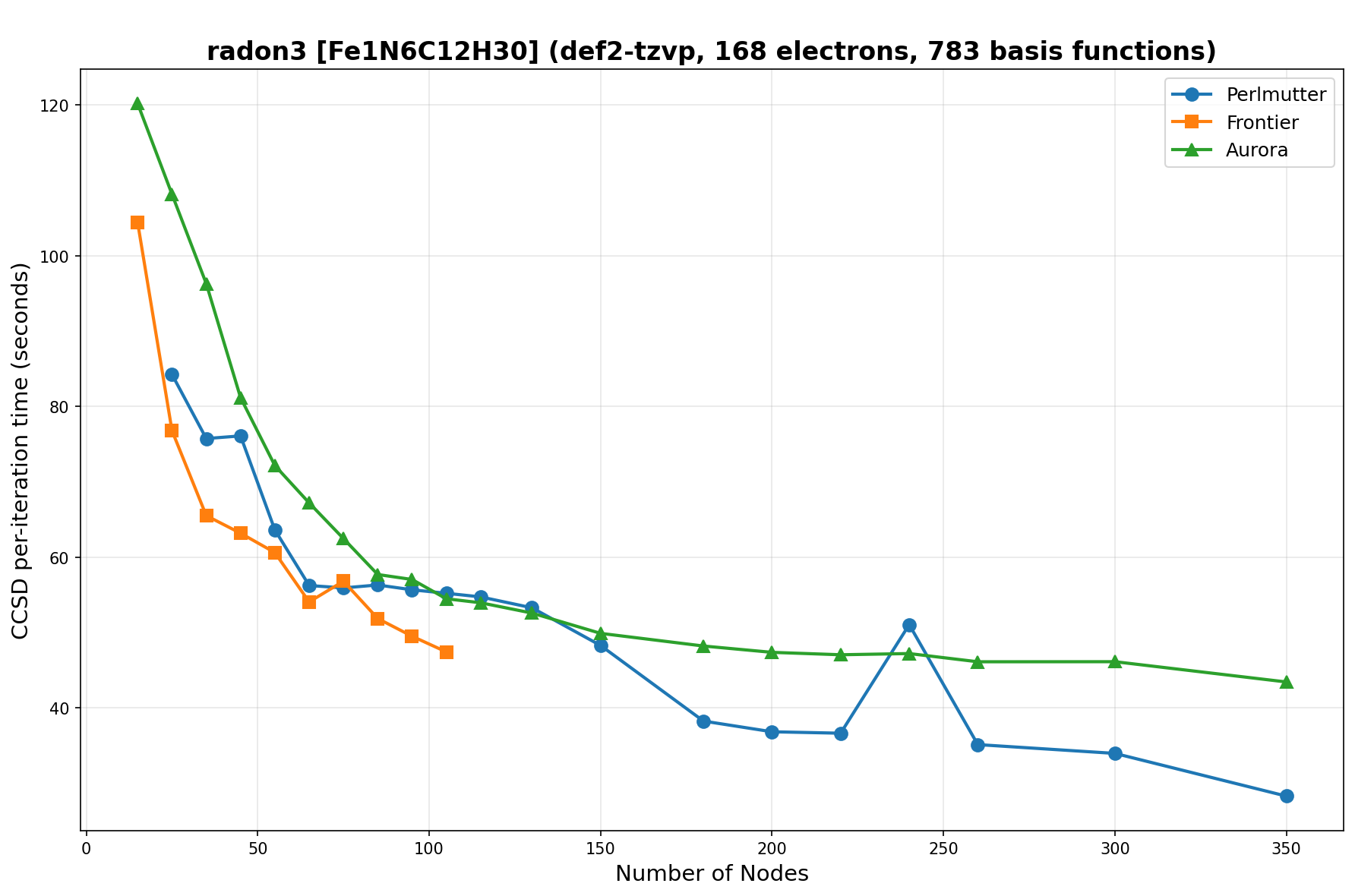

../../_images/combined_ccsd_Oa85_Va698.png

radon3 [Fe1N6C12H30] (def2-tzvp, 168 electrons, 783 basis functions)

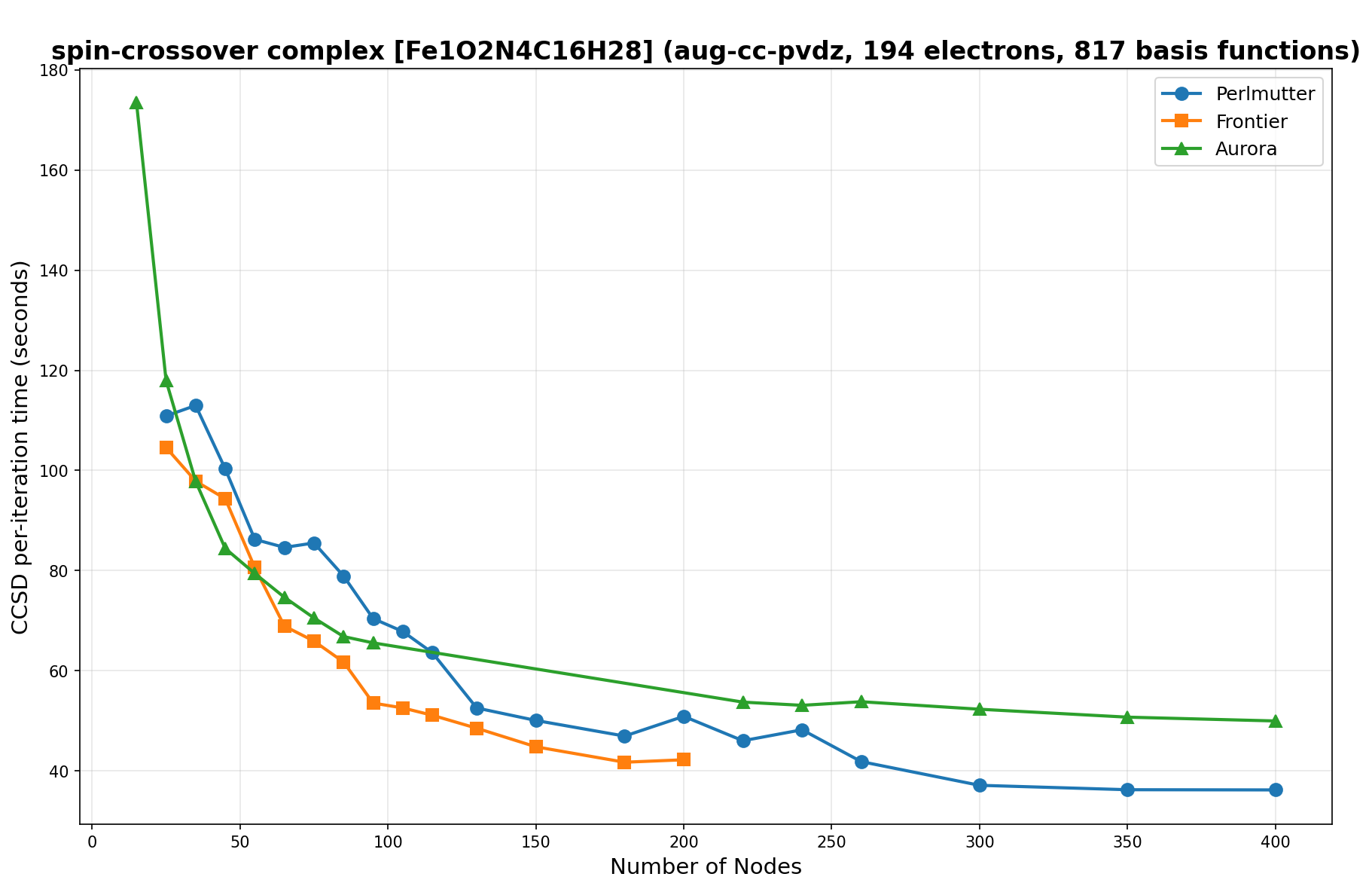

../../_images/combined_ccsd_Oa99_Va718.png

spin-crossover complex [Fe1O2N4C16H28] (aug-cc-pvdz, 194 electrons, 817 basis functions)

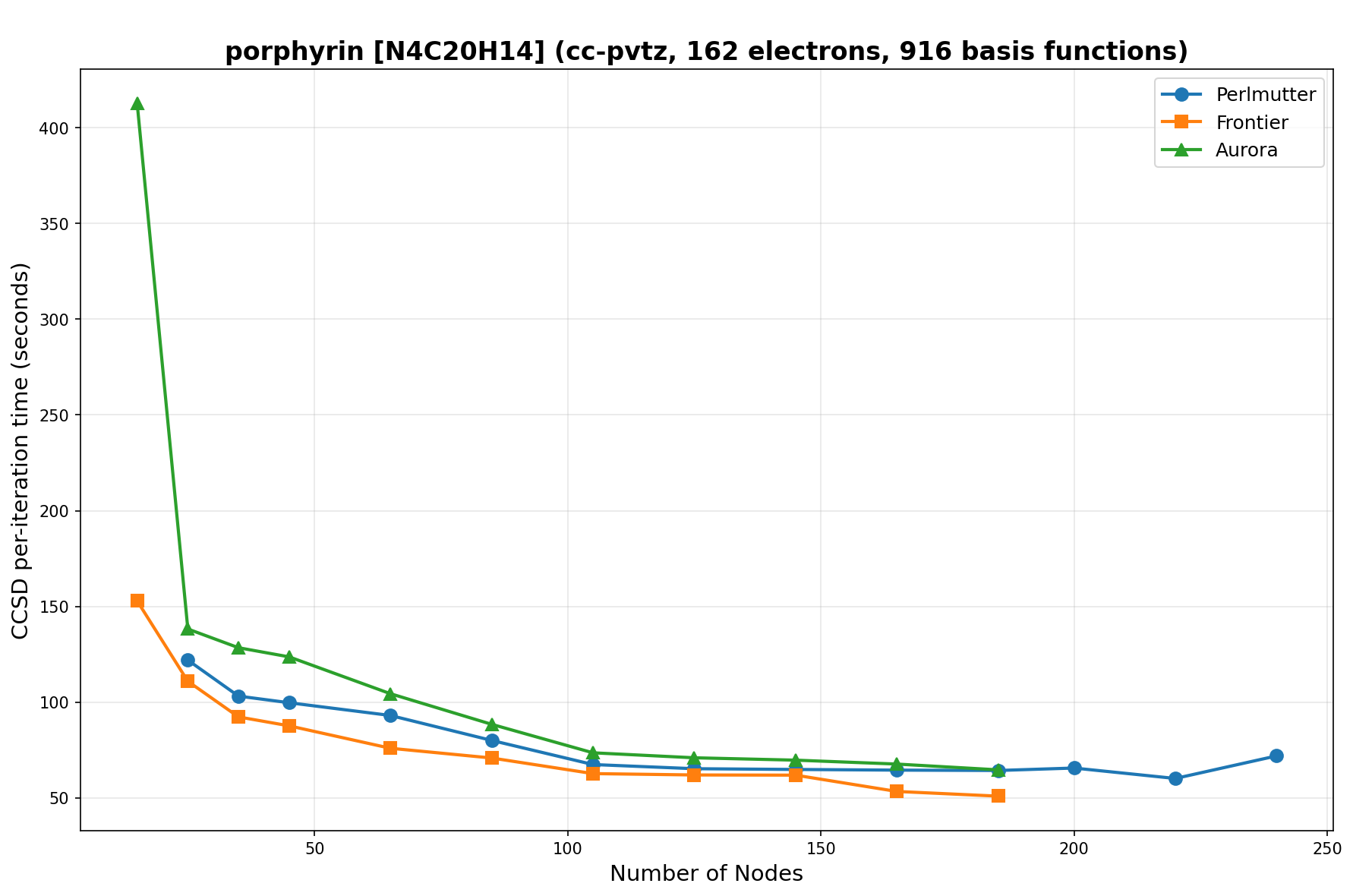

../../_images/combined_ccsd_Oa81_Va835.png

porphyrin [N4C20H14] (cc-pvtz, 162 electrons, 916 basis functions)

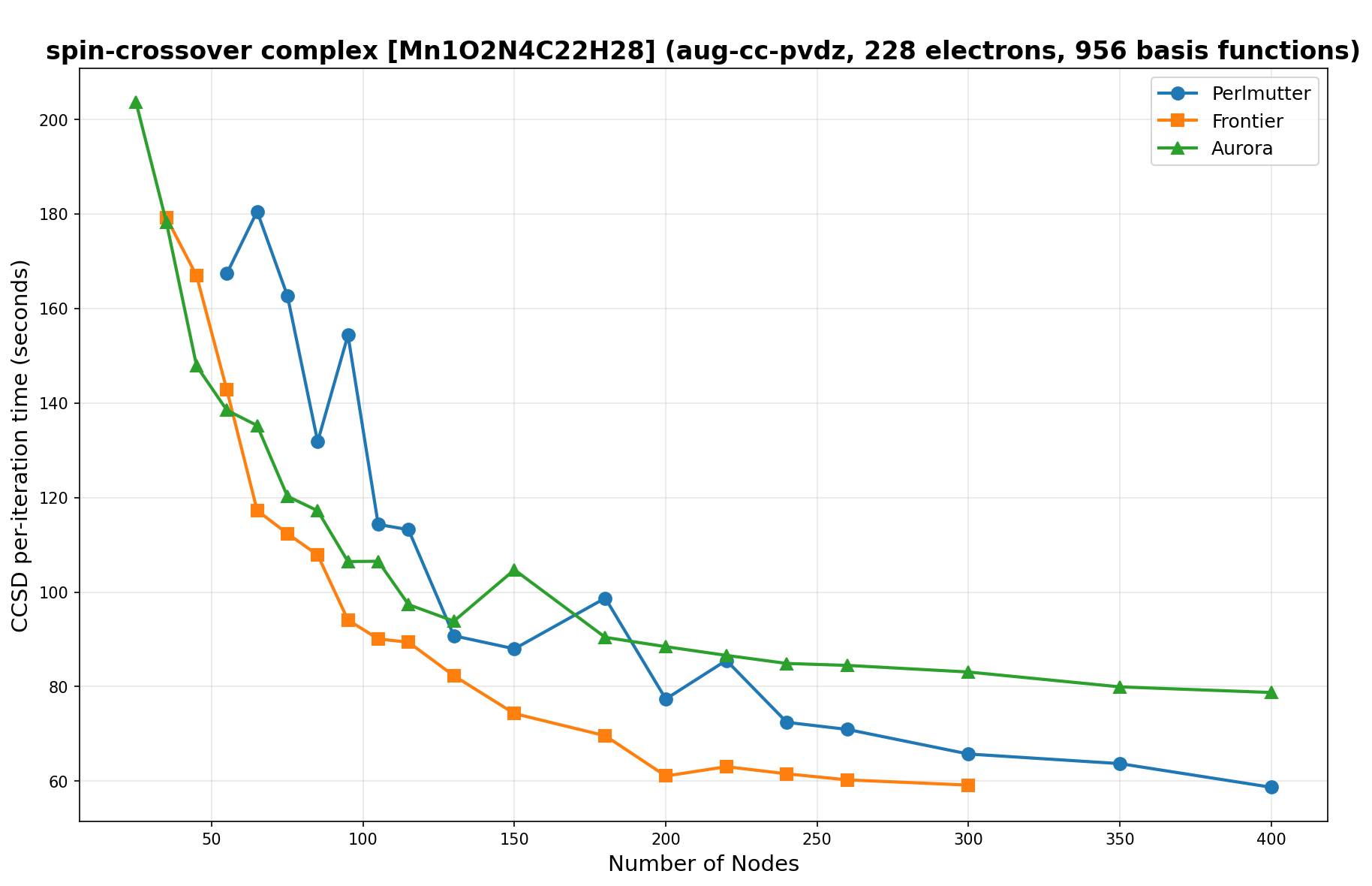

../../_images/combined_ccsd_Oa116_Va840.png

spin-crossover complex [Mn1O2N4C22H28] (aug-cc-pvdz, 228 electrons, 956 basis functions)

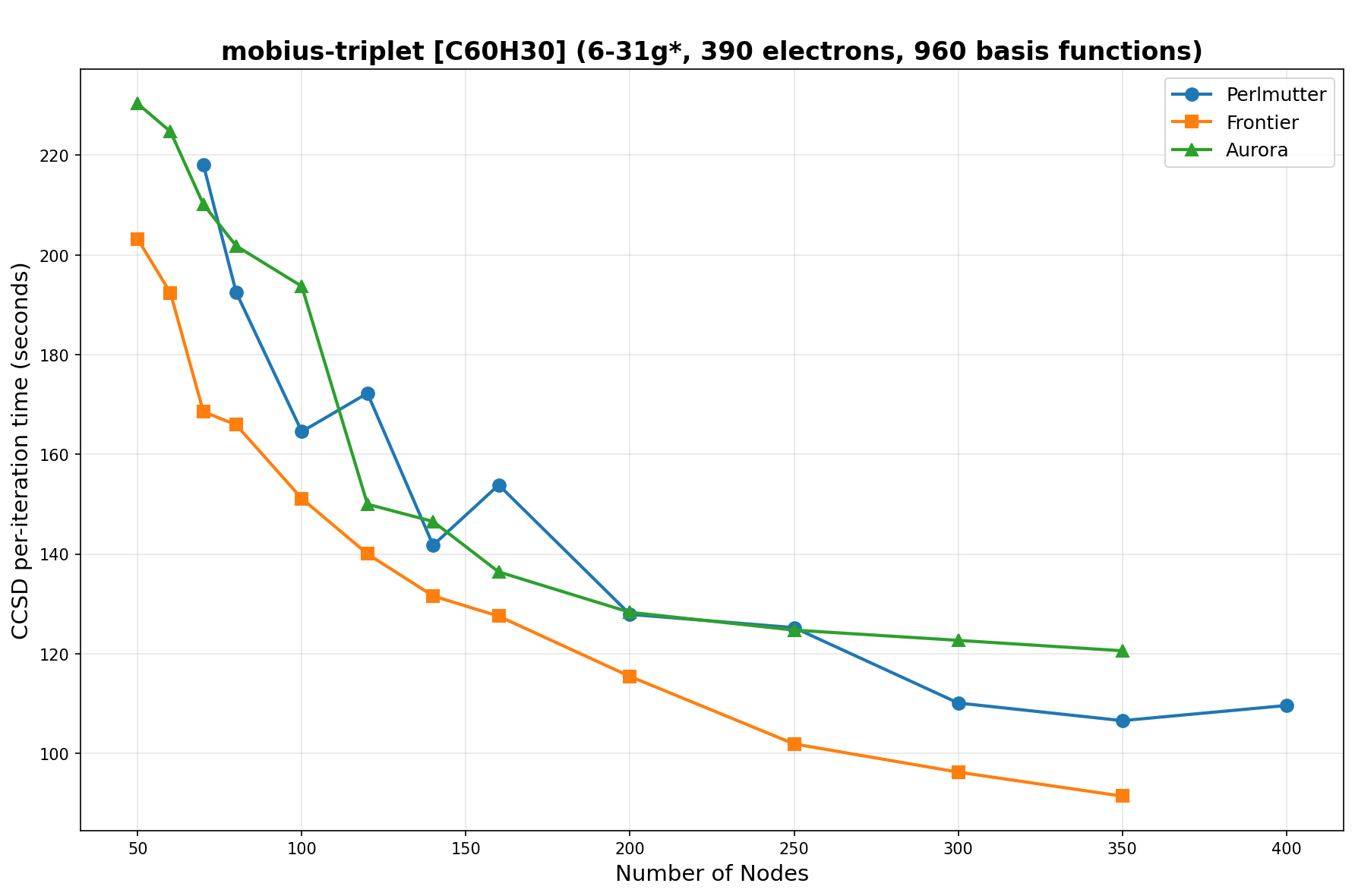

../../_images/combined_ccsd_Oa196_Va764.png

mobius [C60H30] (6-31g*, 390 electrons, 960 basis functions)

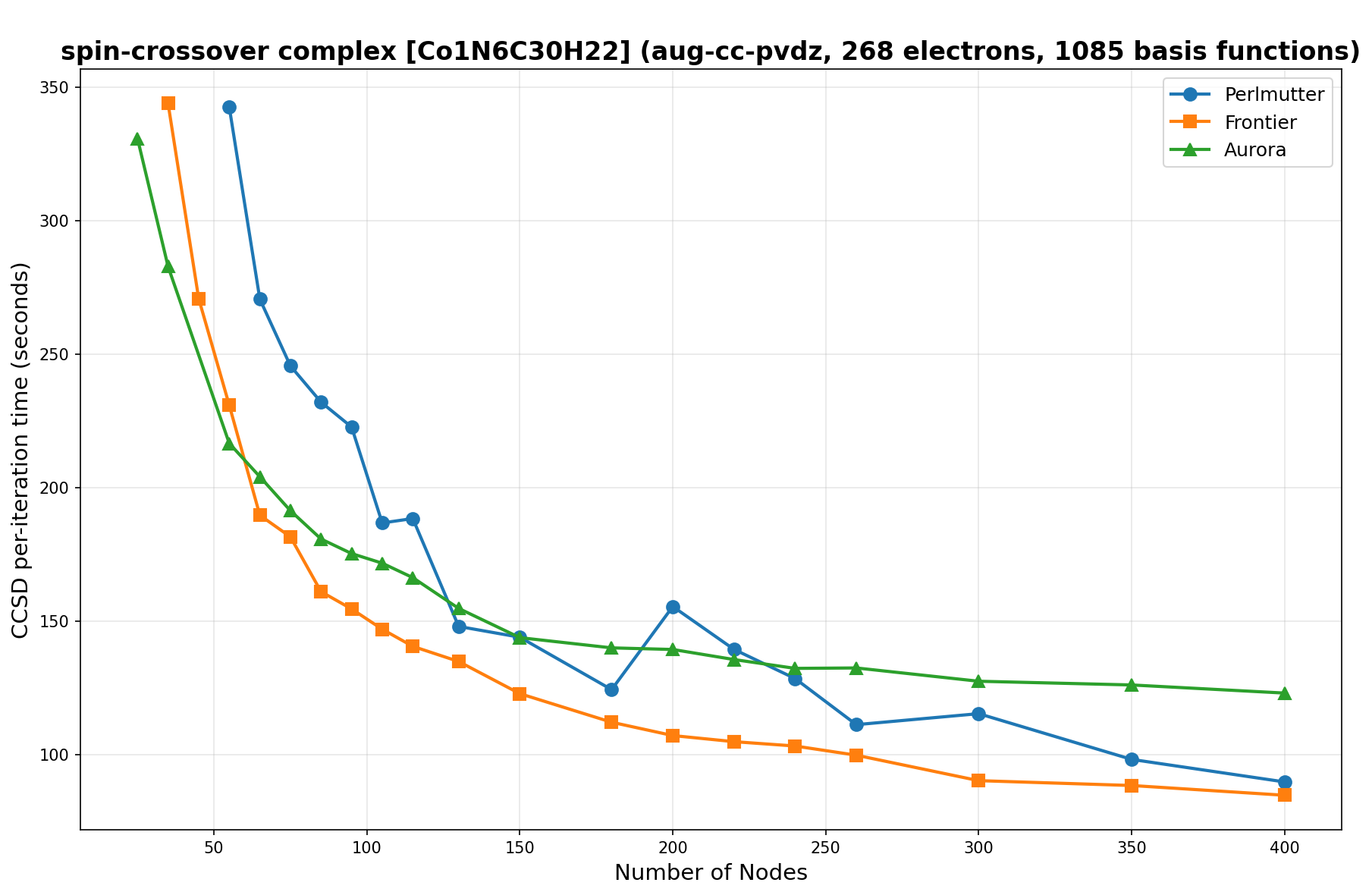

../../_images/combined_ccsd_Oa134_Va951.png

spin-crossover complex [Co1N6C30H22] (aug-cc-pvdz, 268 electrons, 1085 basis functions)

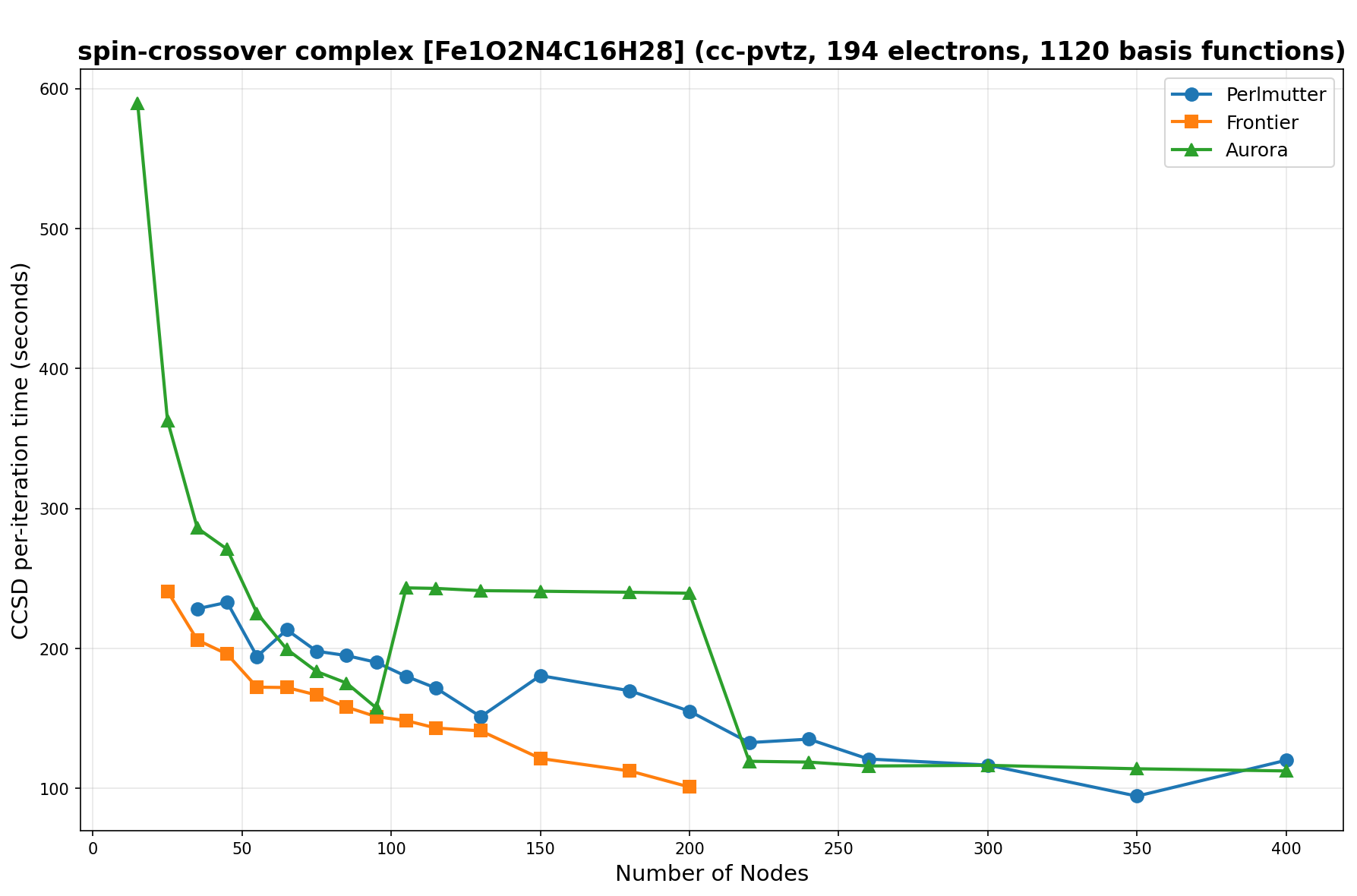

../../_images/combined_ccsd_Oa99_Va1021.png

spin-crossover complex [Fe1O2N4C16H28] (cc-pvtz, 194 electrons, 1120 basis functions)

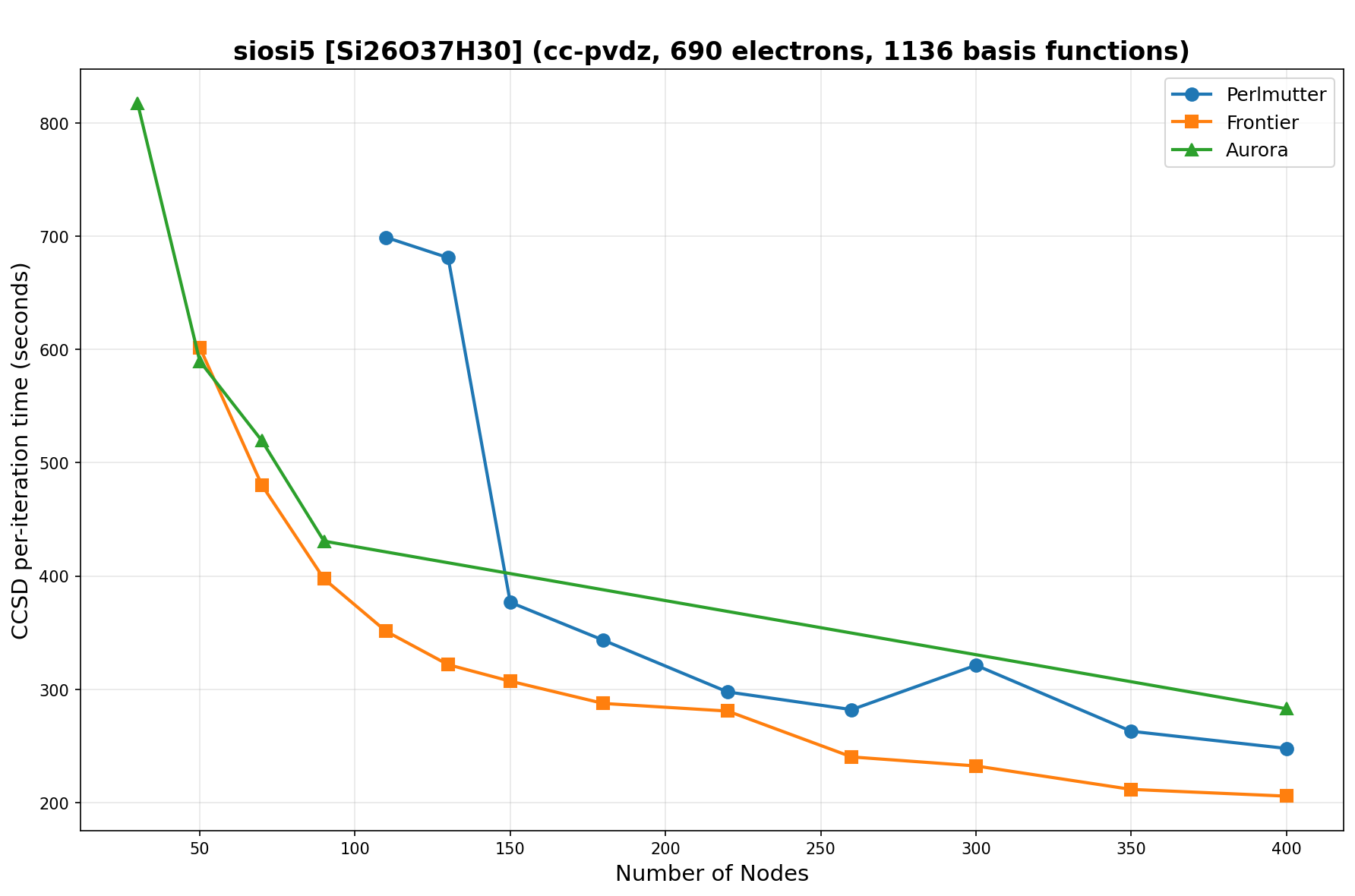

../../_images/combined_ccsd_Oa345_Va791.png

siosi5 [Si26O37H30] (cc-pvdz, 690 electrons, 1136 basis functions)

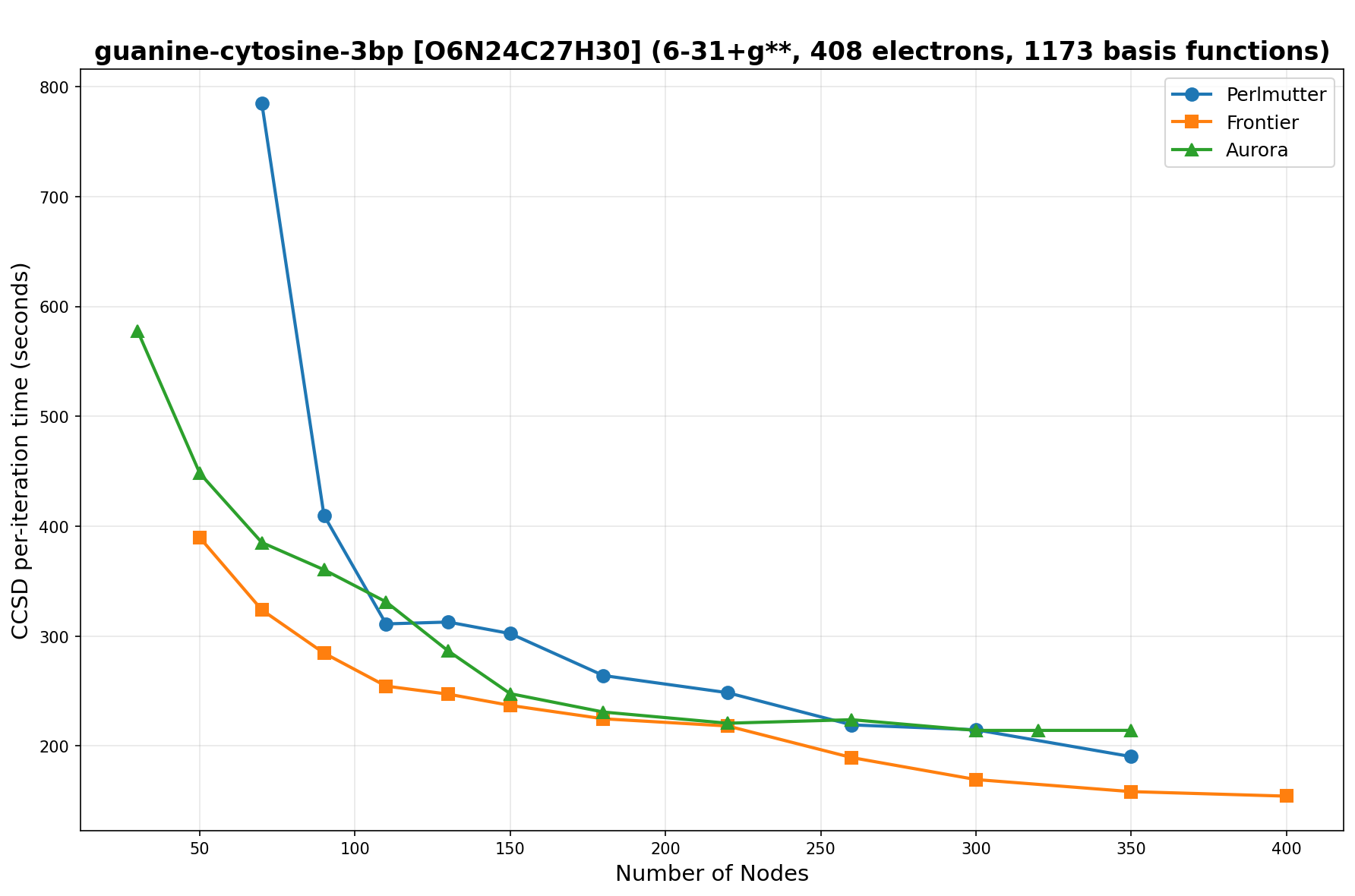

../../_images/combined_ccsd_Oa204_Va969.png

guanine-cytosine-3bp [O6N24C27H30] (6-31+g**, 408 electrons, 1173 basis functions)

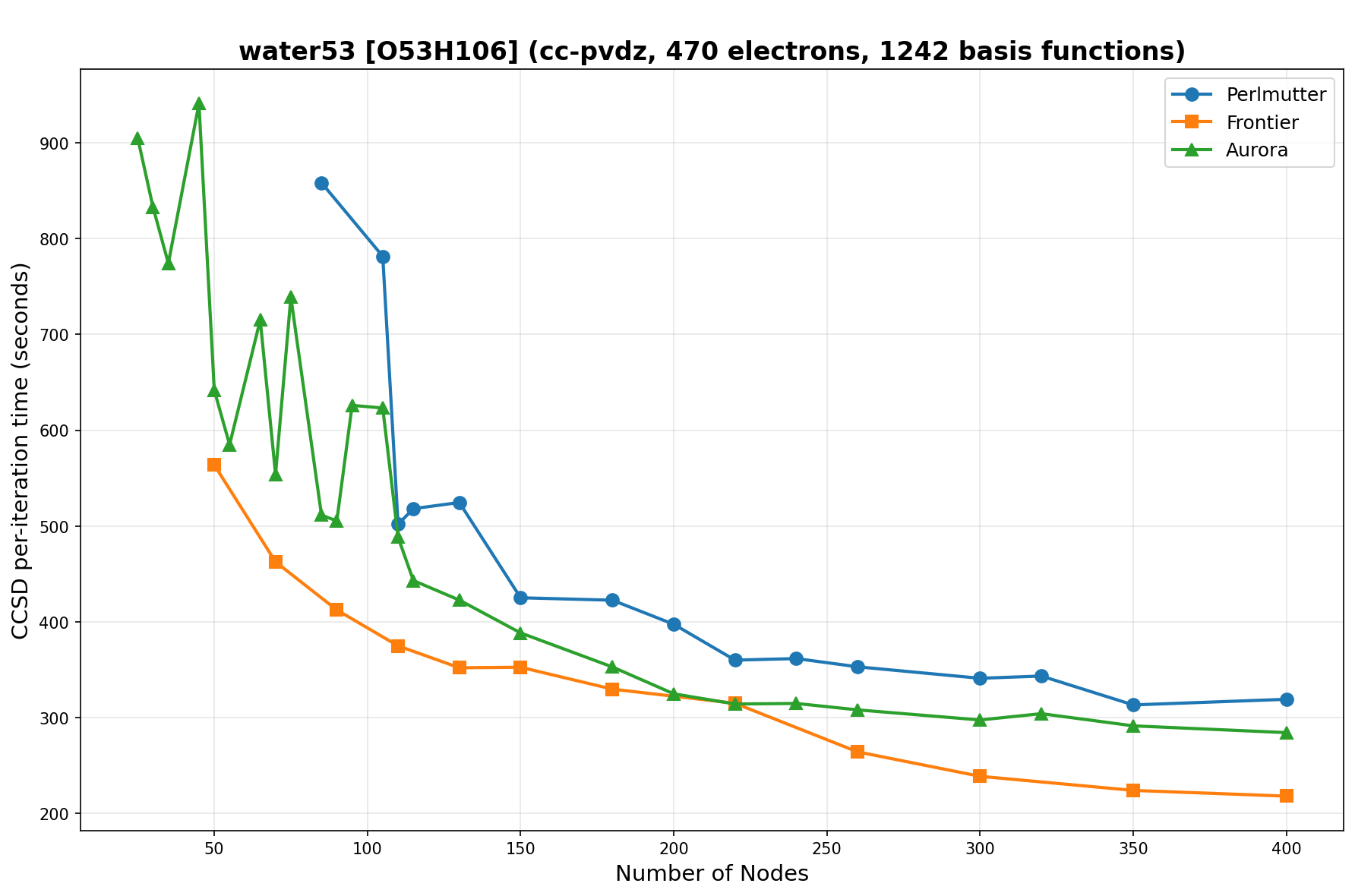

../../_images/combined_ccsd_Oa235_Va1007.png

water53 [O53H106] (cc-pvdz, 470 electrons, 1242 basis functions)

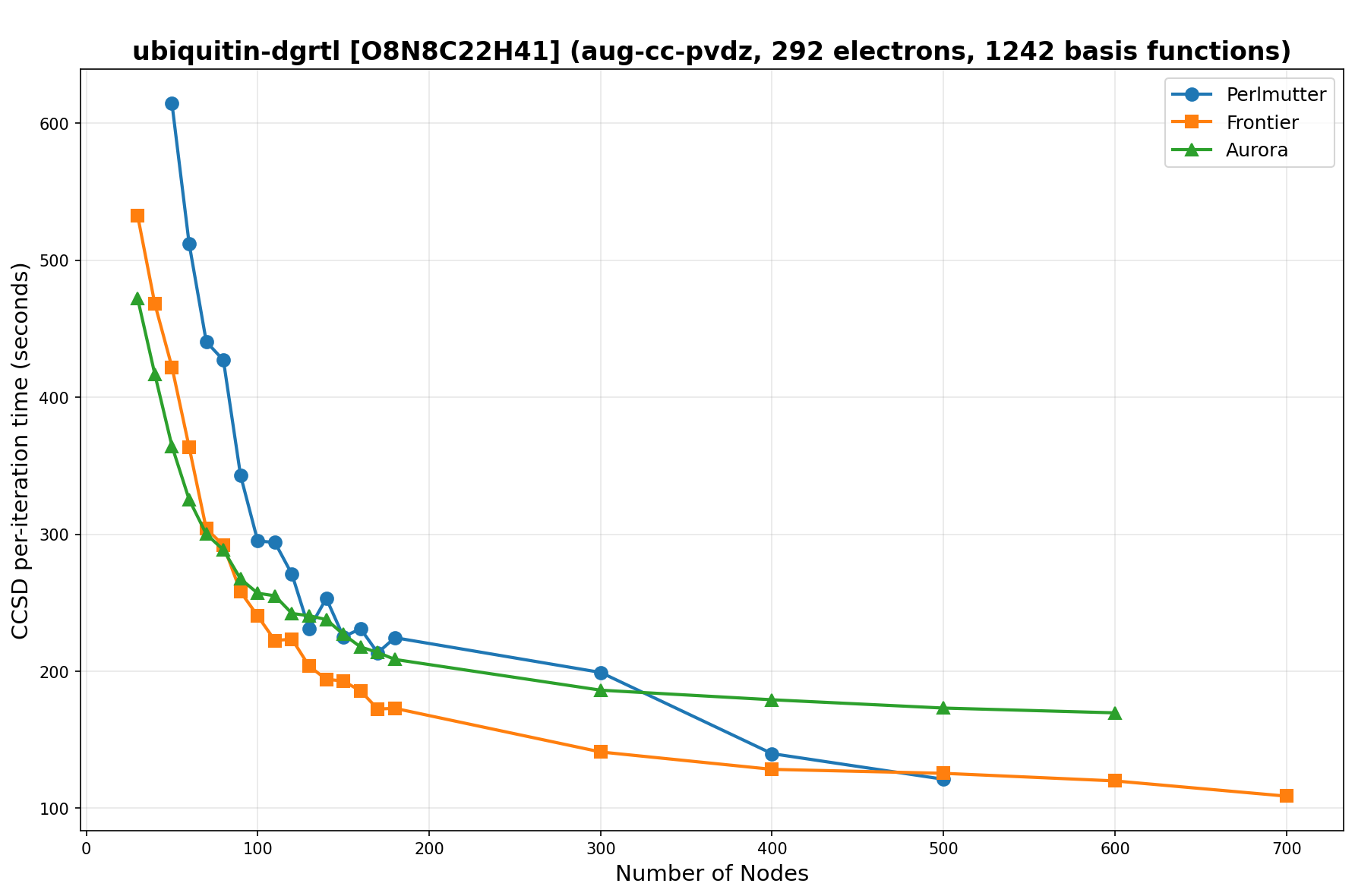

../../_images/combined_ccsd_Oa146_Va1096.png

ubiquitin-dgrtl [O8N8C22H41] (aug-cc-pvdz, 292 electrons, 1242 basis functions)

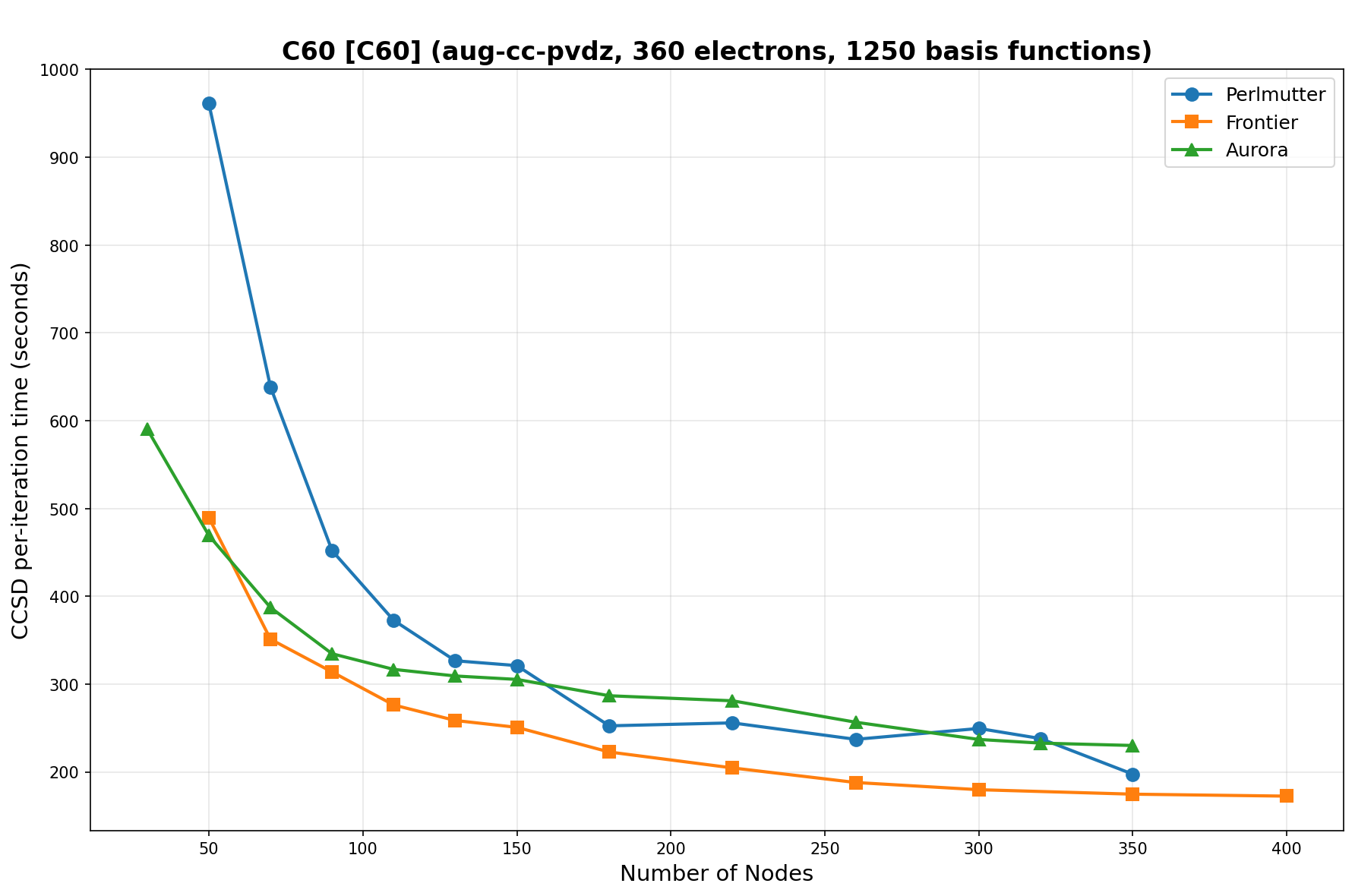

../../_images/combined_ccsd_Oa180_Va1070.png

C60 [C60] (aug-cc-pvdz, 360 electrons, 1250 basis functions)

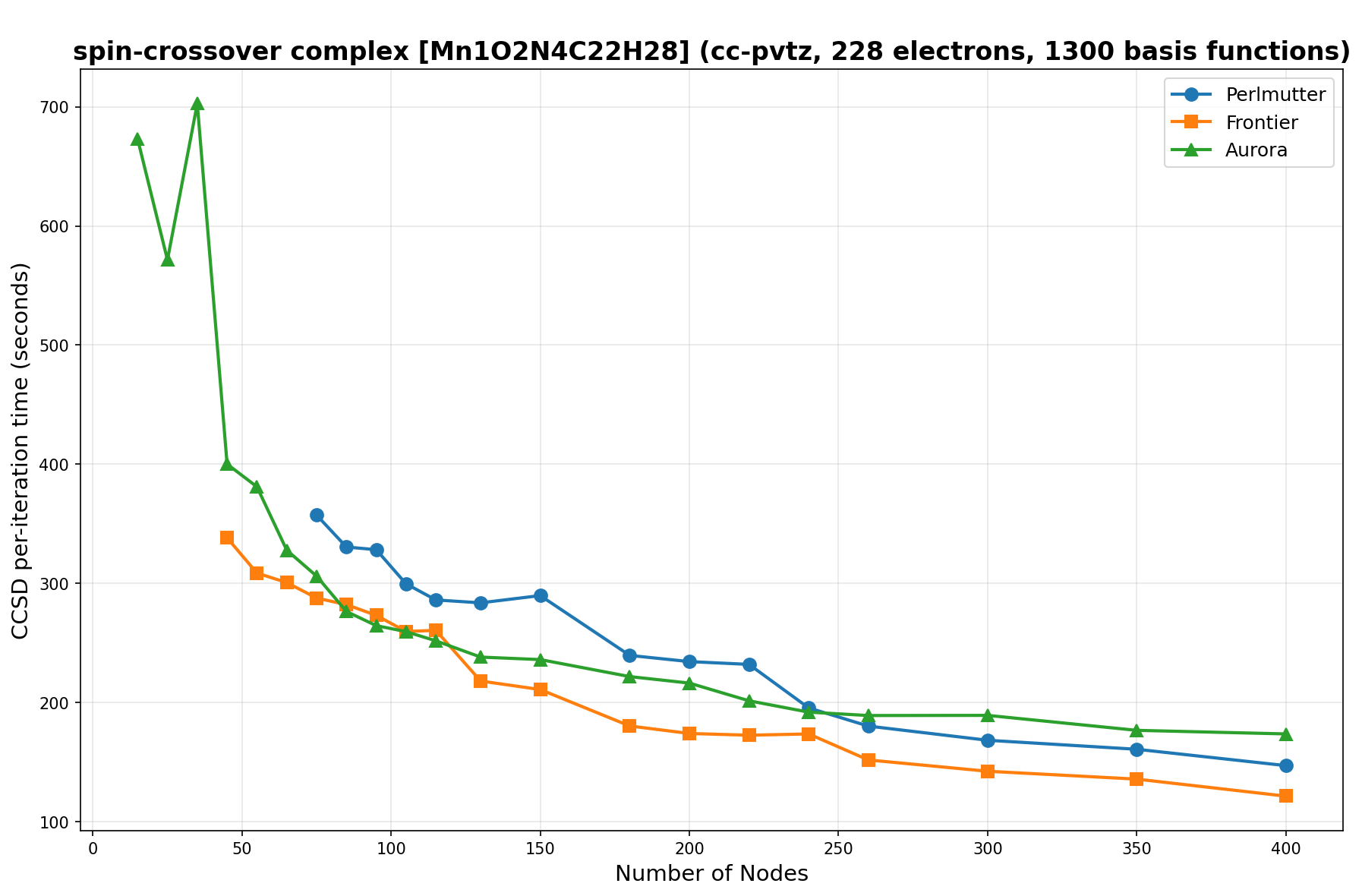

../../_images/combined_ccsd_Oa116_Va1184.png

spin-crossover complex [Mn1O2N4C22H28] (cc-pvtz, 228 electrons, 1300 basis functions)

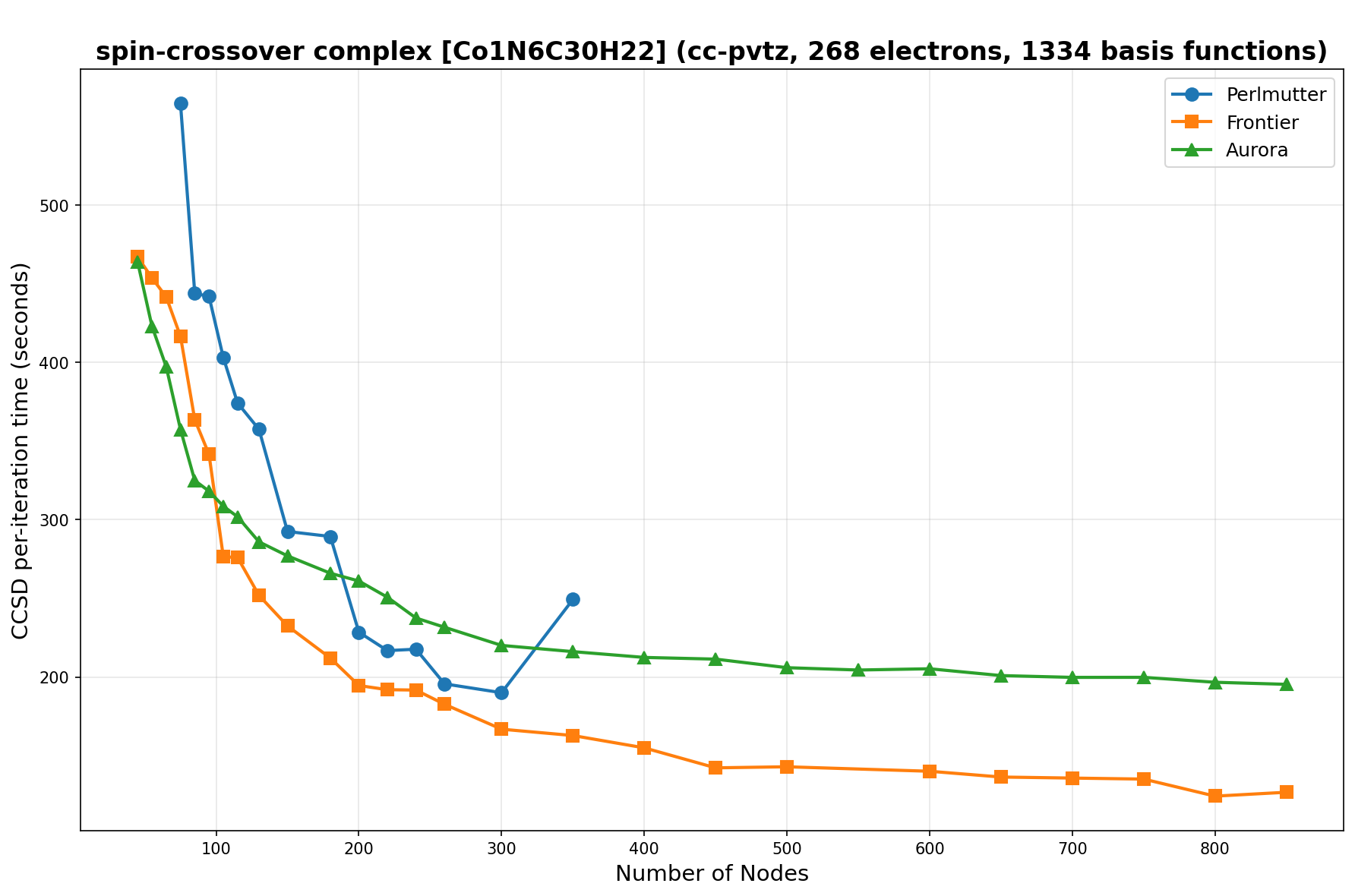

../../_images/combined_ccsd_Oa134_Va1200.png

spin-crossover complex [Co1N6C30H22] (cc-pvtz, 268 electrons, 1334 basis functions)

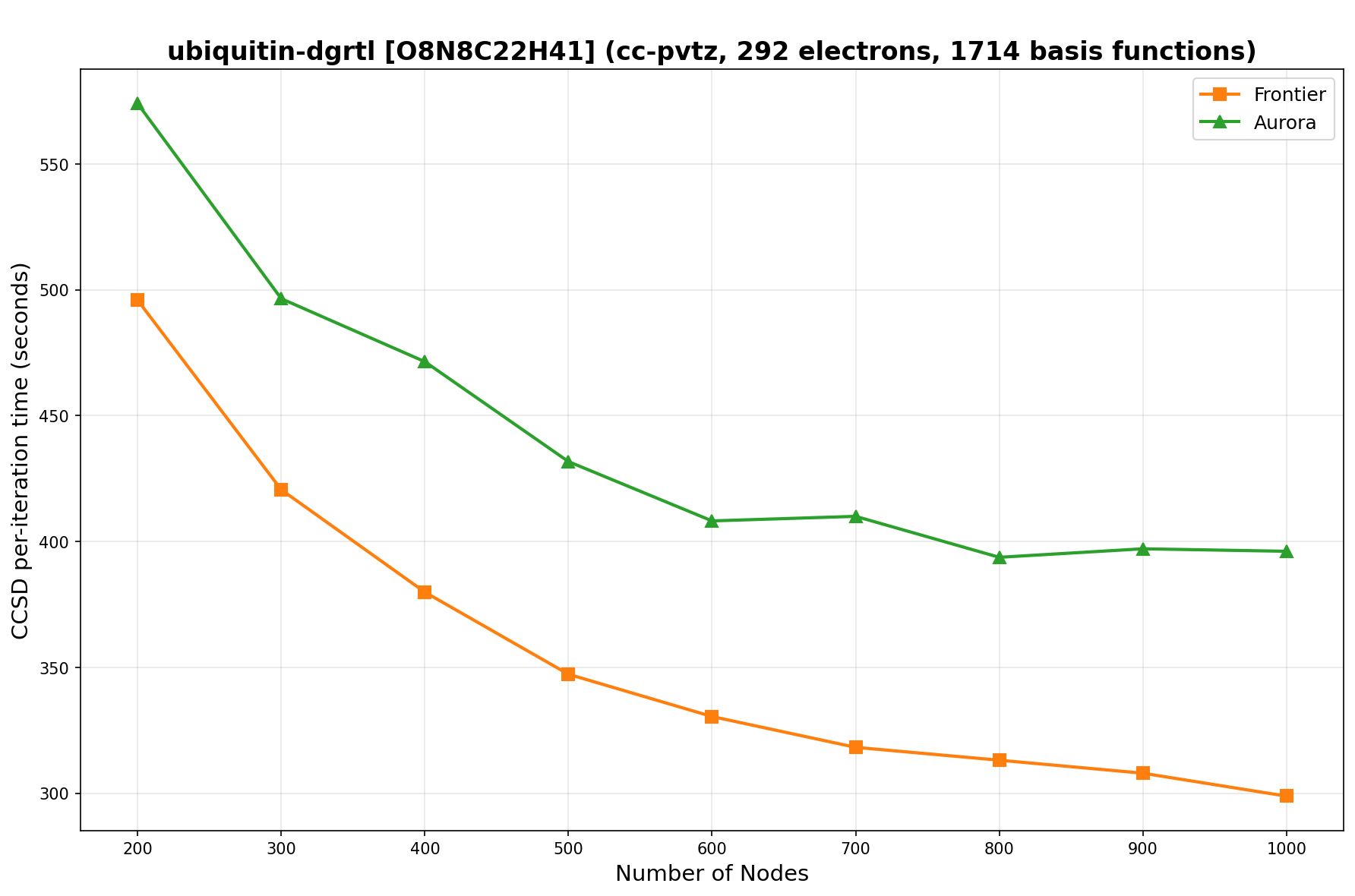

../../_images/combined_ccsd_Oa146_Va1568.png

ubiquitin-dgrtl [O8N8C22H41] (cc-pvtz, 292 electrons, 1714 basis functions)
